Container House Double Storey For Outdoor Office Hotel Hospital Zontop Light Steel Prefabricated Building Container House

Container House Double Storey For Outdoor Office Hotel Hospital Zontop Light Steel Prefabricated Building Container House

The Beijing Municipal Government bidding projects, the project uses a total of 2,456 container houses. Total has 27 buildings in this project.

Product Details

Container House Description

The Beijing Municipal Government bidding projects,the project uses a total of 2,456 container houses.Total has 27 buildings in this project.


container home.png

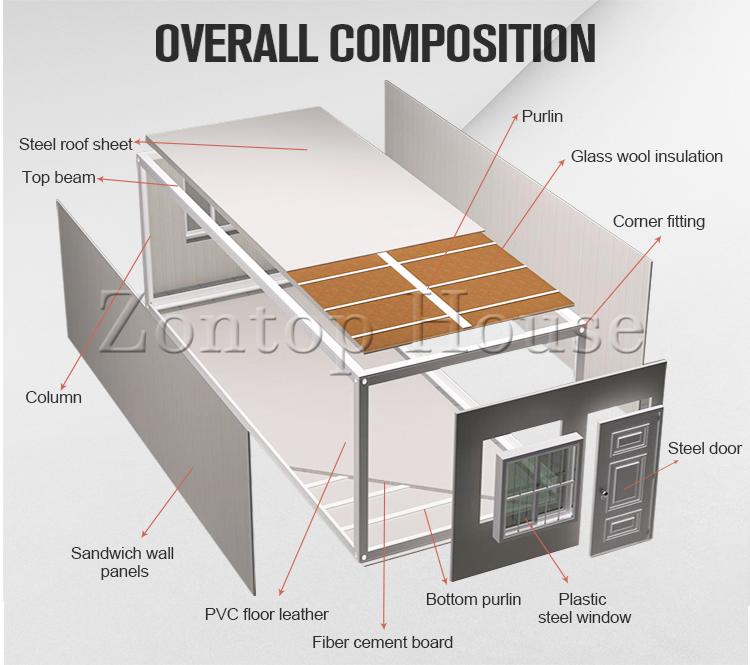

Container House Parameter

Product NameContainer House
Size(L*W*H)External Size: L5950*W2438*H2896
Internal Size:  L5800*W2225*H2520
Steel StructureFrame: Q235 Strip Steel
Hot-rolled galvanized, anti-corrosive coating,
Thickness:2.5/2.7/3.0 mm
Corner post: Galvanized, anti-corrosive2.5/3.0 mm

RoofRoof frame is pre-installed
1)Colored-steel sheet (0.4mm)
2)Glass wool insulation (100mm) Fire Rating:A
3)Purlin: Section C80 Galvanized Steel (1.2mm)
4)Ceiling: Steel self-connected ceiling (0.5mm colored-steel)
WallV950  Rock wool sandwich panel
1150   glass fiber sandwich panel
0.4mm steel sheet             Fire rating: A
WindowHollow plastic window with yarn fan and anti-theft net
Size: 930*1200 2units
FloorBottom frame is pre-installed
1)18mm fiber cement board
2)2.0mm PVC leather
3)100mm glass wool insulation  (optional)
DoorSteel door  High-quality press lock
Size: 970*2070mm
Plumbing and
Drainage
Pre-installed
ElectricityOptional EU/UK socket, with distribution box, light, swich etc.
Loading 6 sets per 40HQ contanier
Application Dormitory/Guard House/Storage/Office/Show Room/House
Store/Refugee


Zontop Project Case Picture

prefabricated house.jpg

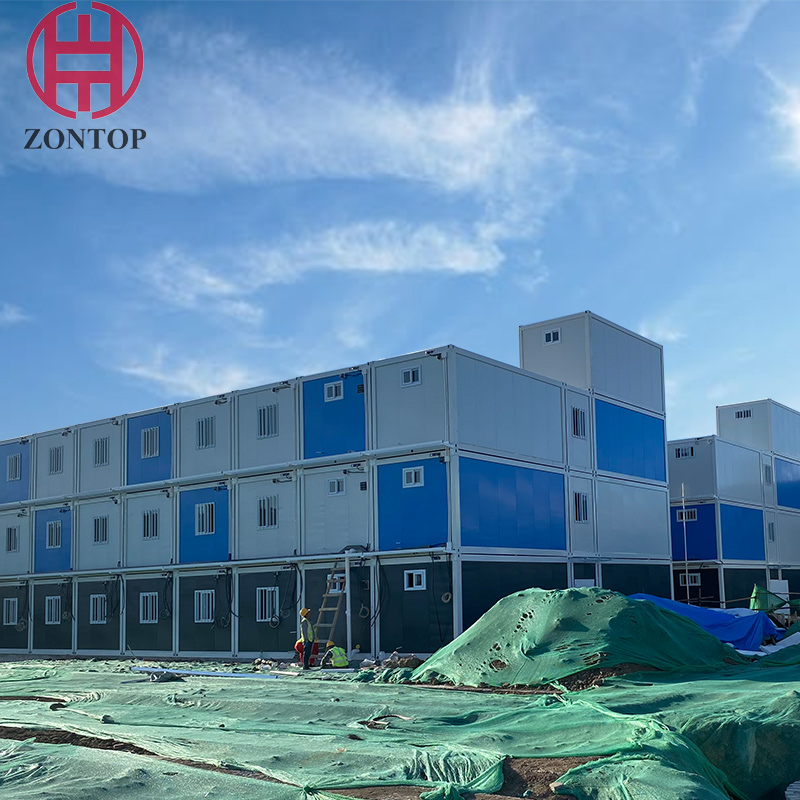

This project is container house. It can be used as office, meeting room, dormitory, shop, exhibition center in the fields of building, railway, highway, water conservancy  electric power, business, tourism and military use.


prefab house.jpg

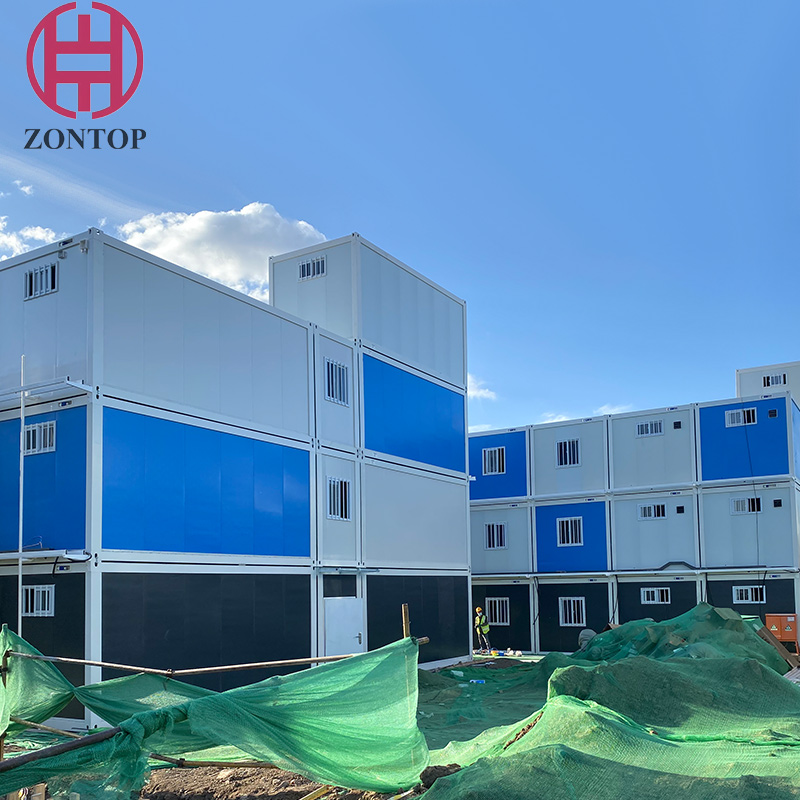

The container house is all air-tight, heat-tight, warm-keeping, water-proof and anti-corrosive.

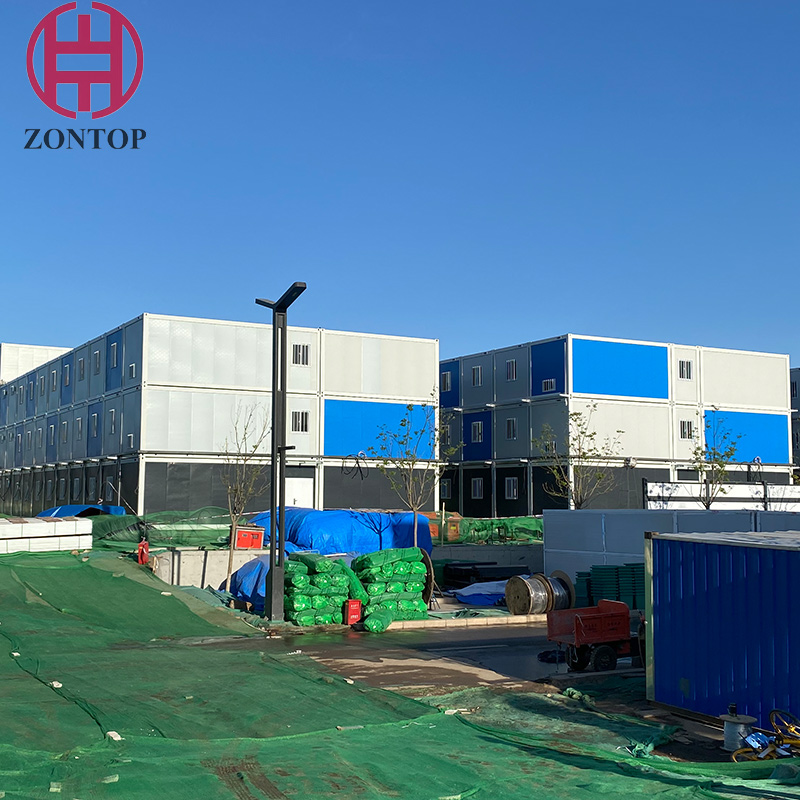

The entire project was contracted by our company. The entire project took only 45 days to be completed and put into use. In addition to this project, we have also participated in the construction of nuclear power plant projects. The safety and quality are very reliable.


prefab home.jpg

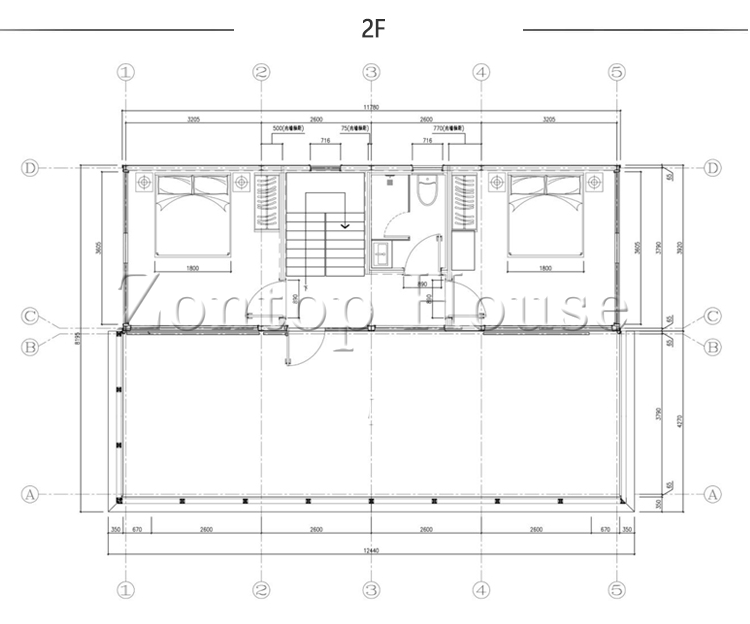

We have a professional design team that can customize the room  layout, size and overall distribution according to customer needs, and provide CAD drawings.

prefabricated home.png

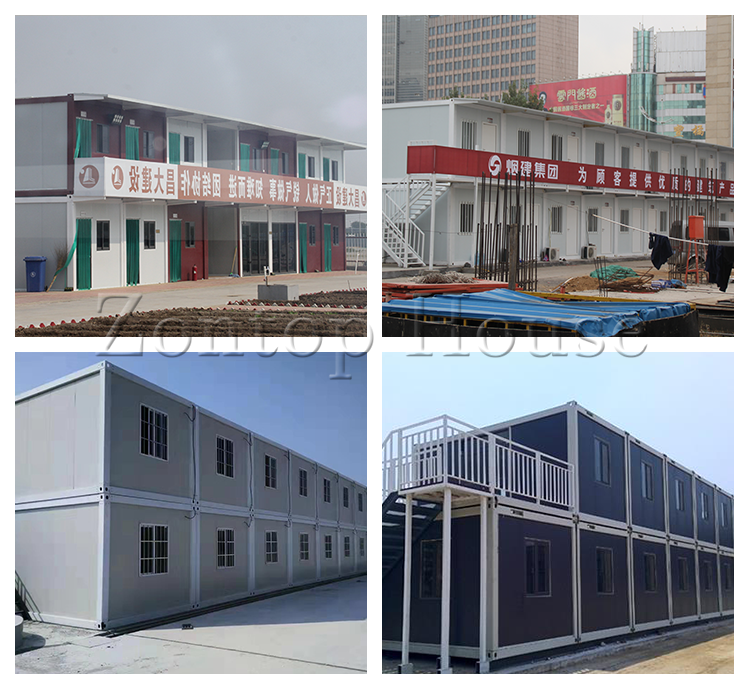

Similar Projects

prefab house.png

Service:

* Twenty-four hours online and one-to-one service, solve your problem efficiently and timely.

* Installation video and guide book will be send to you demonstrating the steps for installation. Or an engineer or installation team can be arranged on site.

* Perfect after-sale service is also provided.
