Factory Wholesale Modular Light Steel Frame Structure Quick Installation K Type Prefab House

Factory Wholesale Modular Light Steel Frame Structure Quick Installation K Type Prefab House

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

Product Details

Prefab K House Overview

As a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc.1621507283807205.gif

The prefab house is also known as the movable prefab house and the colored steel movable house.


Prefab K House Parameter

Product Name

Prefab House

Column

Double C80 steel, Thickness 1.8mm, Material Q235

Roof Beam

C80 steel, Thickness 1.5mm, Material Q235

Floor Purlin

C80 steel, Thickness 1.5mm, Material Q235

Wall Panel

Colored-steel sheet
EPS sandwich panel/rock wool sandwich panel
Glass wool sandwich panel
Fire ratingA

Window

Aluminum sliding window/sliding window with a security bar

Door

Steel door. High-quality press lock

Roof bearing weight

110kg/m2

Snow load on roof

130Pa (13cm thickness)

Floor bearing weight

200kg/m2

Anti-earthquake

9 grade

Application

Dormitory/Storage/Office/Carport/Hotel/Sentry Box/Warehouse/Store/Refugee/Workshop, etc

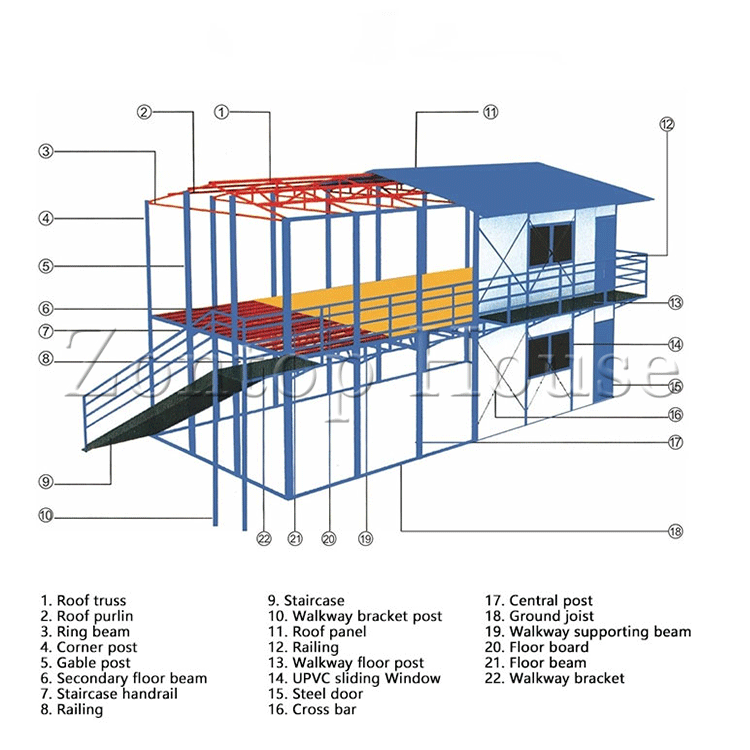

Prefab K House Feature

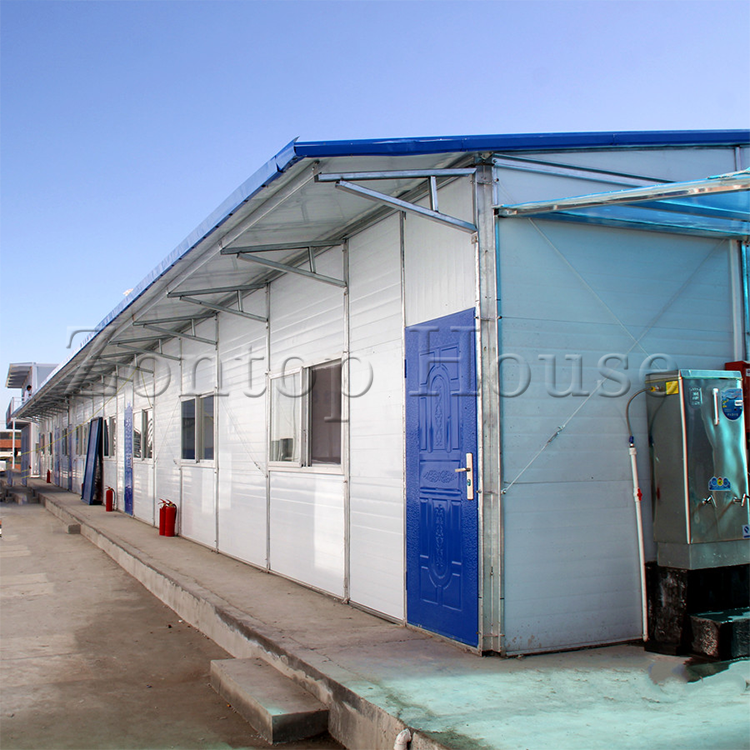

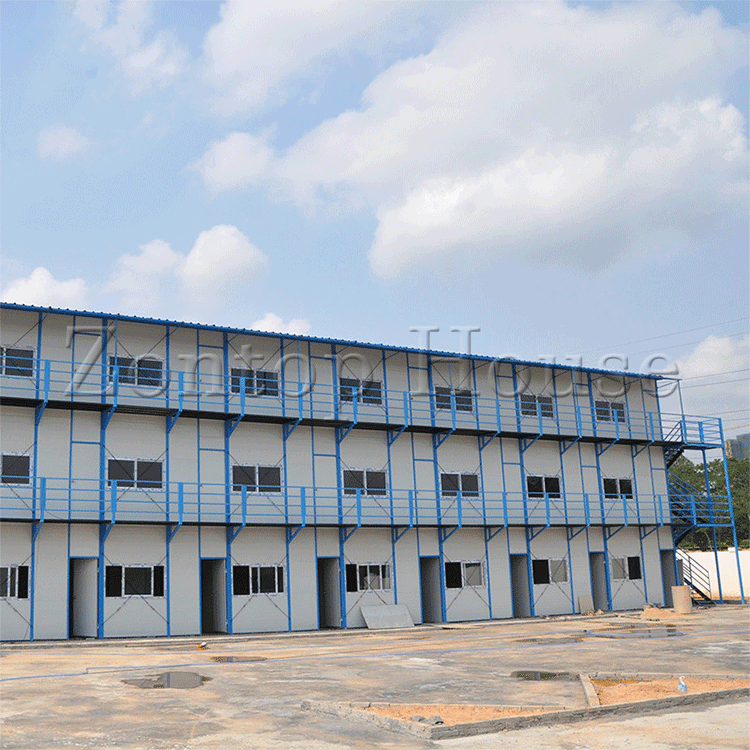

Project display

The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

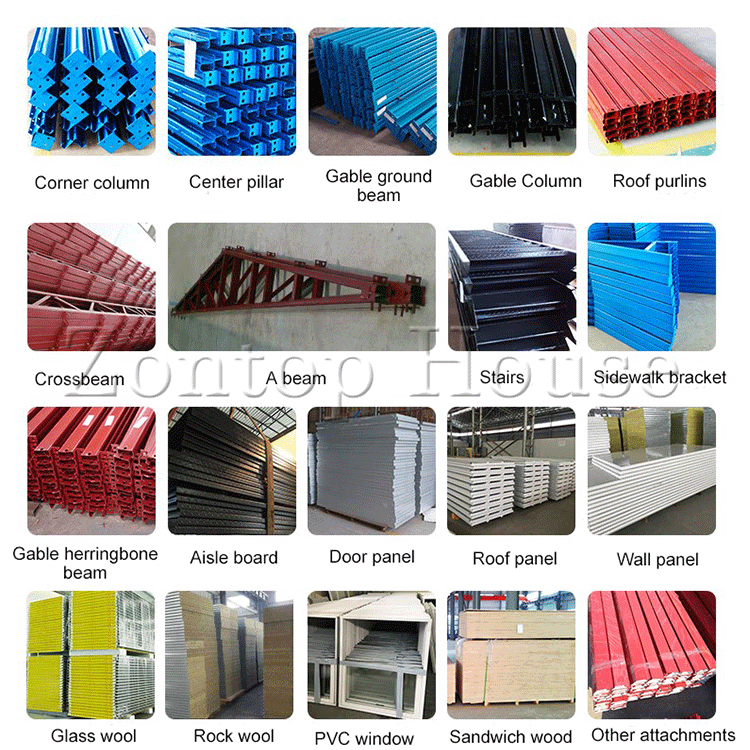

Product materials details


Why choose Us:

1.Our product can be designed as customers’ interest.

2.Every production line will be checked by professional person and all products must 3.go through multi-channel detection steps before packaging.

4.We can provide professional for installation guide.

5.The products shown are only part of our products. For more details ,please feel free to contact us anytime.
