China Factory Direct Sales Steel Structure For Seismic Fire Luxry Container House Hotel

China Factory Direct Sales Steel Structure For Seismic Fire Luxry Container House Hotel

Zontop Homes offers one of the most extensive collections of prefab modular homes. Clients can choose from contemporary cabins, traditional arts and crafts-style homes, and more.

Product Details

Container House Description

Flat pack container house can be used as office, meeting room, dormitory, shop, exhibition center in the fields of building, railway, highway, water conservancy project, electric power, business, tourism and military use.

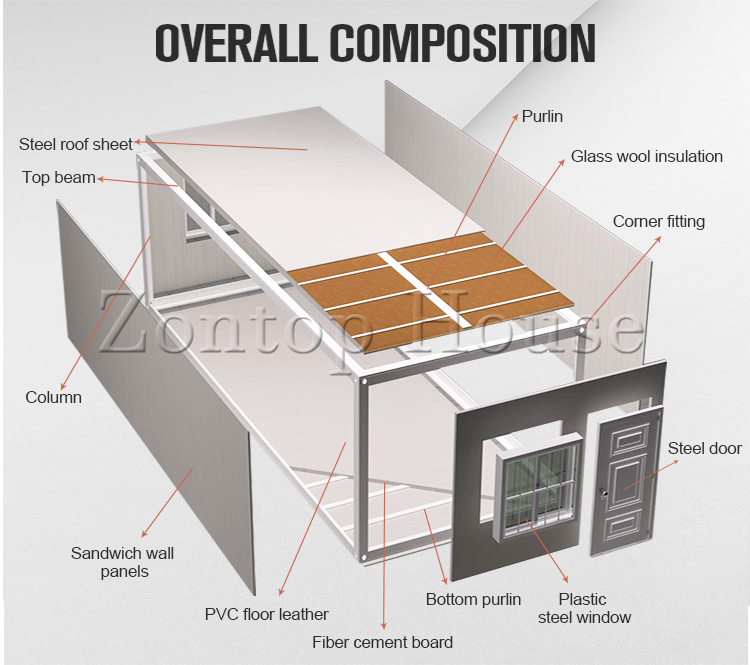

container house.png

Container House Parameter

Product NameContainer House
Size(L*W*H)External Size: L5950*W2438*H2896
Internal Size:  L5795*W2225*H2520
Steel StructureFrame: Q235 Strip Steel
Hot-rolled galvanized, anti-corrosive coating,
Thickness:2.5/2.7/3.0 mm
Corner post: Galvanized, anti-corrosive2.5/3.0 mm

RoofRoof frame is pre-installed
1)Colored-steel sheet (0.5mm)
2)Glass wool insulation (100mm) Fire Rating:A
3)Purlin: Section C80 Galvanized Steel (1.2mm)
4)Ceiling: Steel self-connected ceiling (0.5mm colored-steel)
WallV950 50mm Rock wool sandwich panel
1150 75mm glass fiber sandwich panel
0.5mm steel sheet             Fire rating: A
WindowHollow plastic window with yarn fan and anti-theft net
Size: 1130×1100 2units
FloorBottom frame is pre-installed
1)18mm fiber cement board
2)2.0mm PVC leather
3)100mm glass wool insulation (16kg/m3) optional
DoorSteel door  High-quality press lock
Size: 840×2030mm
Plumbing and
Drainage
Pre-installed
ElectricityOptional EU/UK socket, with distribution box, light, swich etc.
Loading 6 sets per 40HQ contanier
Application Dormitory/Guard House/Storage/Office/Show Room/House
Store/Refugee

container home.pngThe sloping roof container house is decorated with external glass curtain wall, which is fully airtight, heat-insulated, waterproof and waterproof.

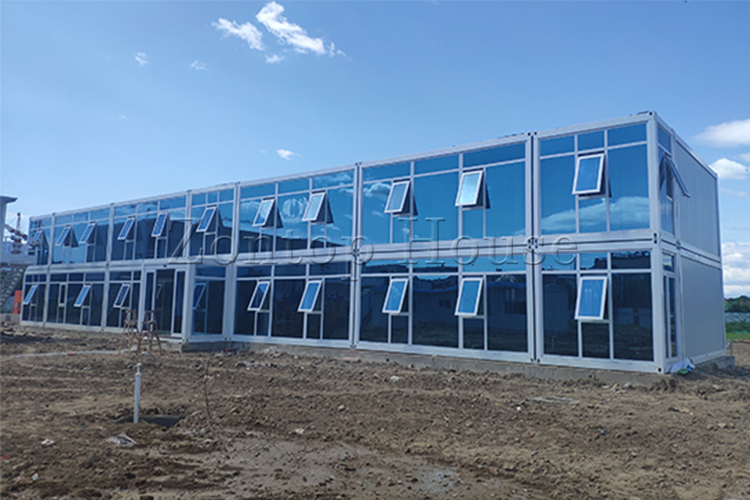

prefab house.png

Container House Superiority:

1.Steel Structure Light-weightness and more resistance to earthquakes and strong winds.

2.Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel.

3.Steel Structure Shorter construction period with the help of modularity and error-free prefabrication of building elements.

4.Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage of materials in the factory.

5.Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of the space.

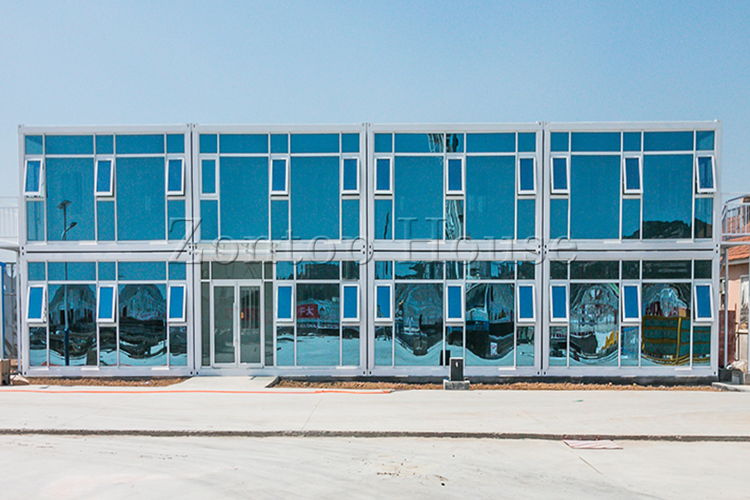

prefabricated house.png

Flat Packing Container House

It has the advantages of convenient disassembly and packing, lower transport cost, modularization installation and fast construction.  When transported to the site, the house could be assembled, fixed, combined and stacked easily. As the steel frame is strong and reliable, those houses could be stacked vertically and connected parallelly to create more space. It is widely used as temporary office, dormitory, camp, meeting rooms, restaurant, reception building, temporary sales offices, permanent housing and so on.

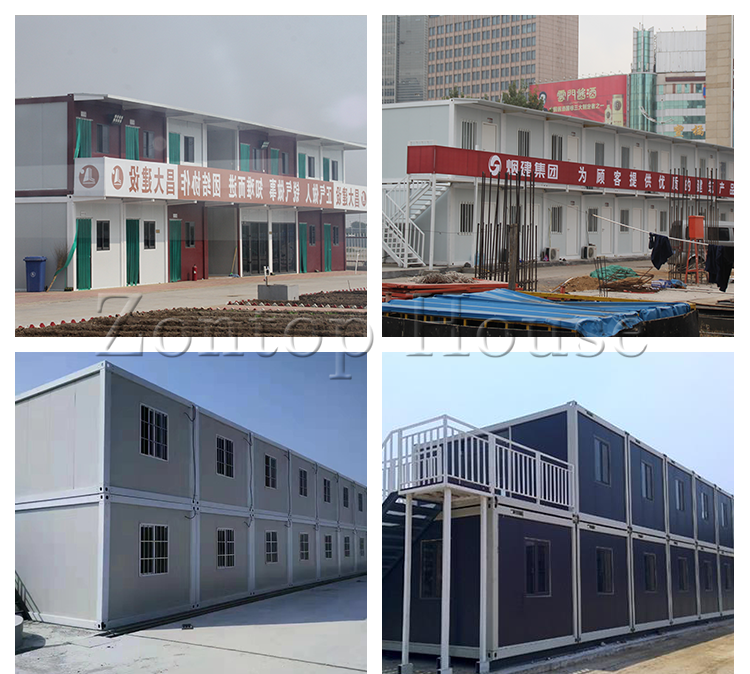

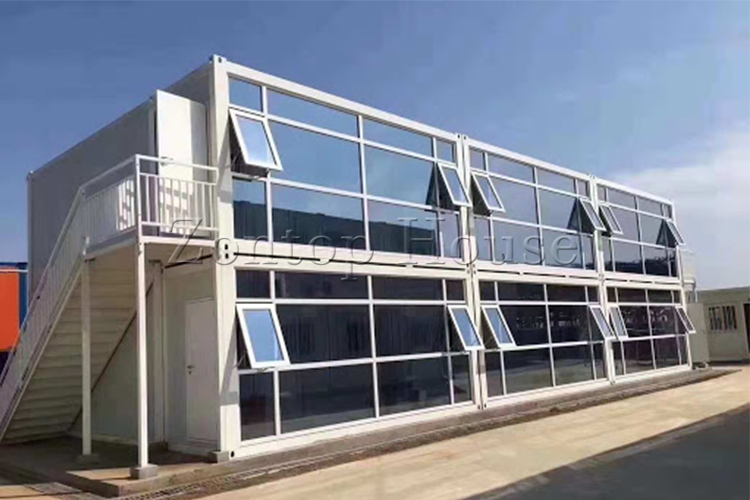

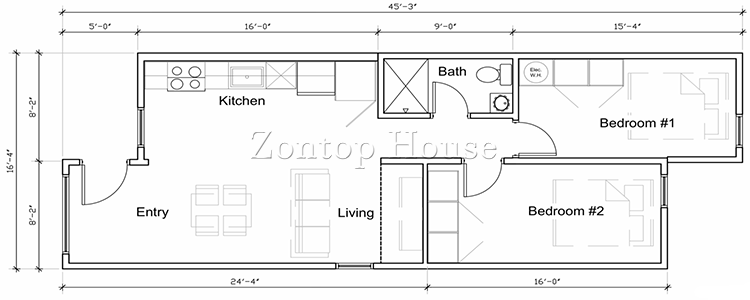

prefab home.pngprefabricated home.pngSimilar Projects

light steel building.png

Service:

* Twenty-four hours online and one-to-one service, solve your problem efficiently and timely.

* Installation video and guide book will be send to you demonstrating the steps for installation. Or an engineer or installation team can be arranged on site.

* Perfect after-sale service is also provided.
