Galvanized Steel Structure Warehouse Large Span Workshop Steel Frame Industrial Shed Prefab Building

Galvanized Steel Structure Warehouse Large Span Workshop Steel Frame Industrial Shed Prefab Building

Steel structure is composed of steel material structure, which is one of the main building structure types. The structure is mainly composed of steel plate, steel column, steel truss and other components, the components are usually used to between the weld, bolts or rivets connected. Because of its relatively light weight and simple construction, it is widely used in large factories, venues, high-level areas.

Product Details


Steel Structure Descriptionsteel structure , prefab house ,light steel structure

Steel Structure Parameters

Product nameprefabricated steel structure gymnasium
Materialsteel Q235, Q345B
Colorblue, grey, red, etc.Customer's requirements
LengthWith customer's requirements
WidthSingle span, double-span, multi-span. With customer's requirements
HeightWith customer's requirements
ColumnQ235, Q345 welded H section steel or hot rolled H section steel
BeamQ235, Q345 welded H section steel
PurlinQ235 C channel or Z channel
Knee braceQ235 angle steel
Vertical and transversal
Q235 angle steel, round bar or steel pipe
Tie barQ235 steel pipe
BraceQ235 round bar
Cladding systemEPS, PU, Fiber Glass and Rock Wool and sandwich panels or corrugated steel sheet with fiberglass wool insulation. Available in different color & gauges
Partition wallsandwich panels(EPS, PU, Fiberglass, Rock wool etc.)Available in different color & gauges
Door
sandwich panel sliding door or roller door
Gutterstainless steel or color steel sheet
RainspoutPVC Pipe
Wind resistance grade12 grades
Earthquake-resistance8 grades
Life span50 years
Paint optionsAlkyd painting, two primary painting, two finish painting(grey paint, red paint, white paint, epoxy zinc etc) or galvanized

steel structure workshop.pngInstallation Notes

(1) Keep work area clean. Cluttered areas invite injuries.

(2)Keep children away. Be aware of personal safety.

(3) It is easy assembling if according to our assembly manual. Improper assembly may cause unnecessary mistakes.

(4)Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during hurricane.

(5)Clean off snow in time and do not allow snow to sit for extended periods of time.

(6)Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.

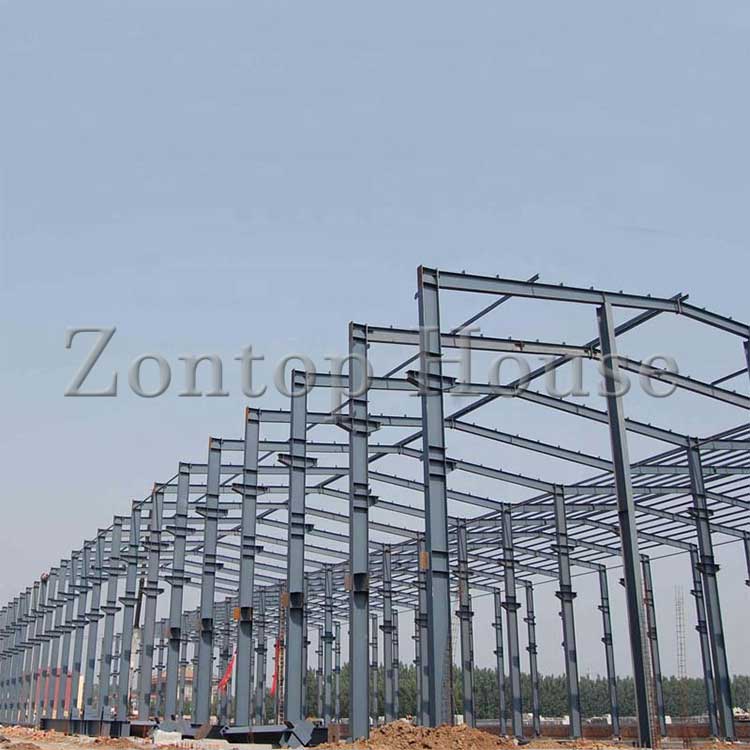

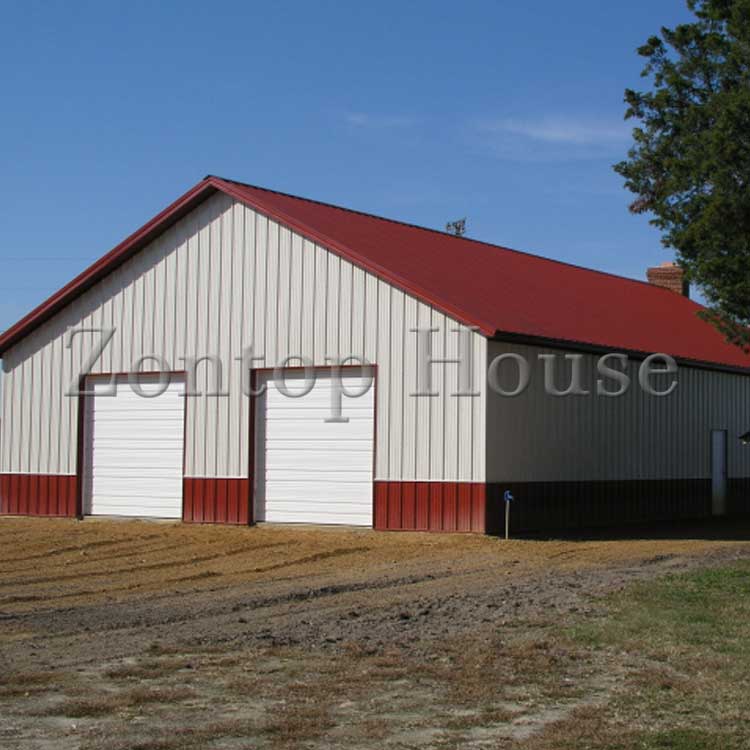

steel structure , prefab house ,light steel structure

Steel Structure Series

Steel structure is composed of steel material structure, is one of the main building structure types. The structure is mainly composed of steel plate, steel column, steel truss and other components, the components are usually used to between the weld, bolts or rivets connected. Because of its relatively light weight and simple construction, is widely used in large factories, venues, high-level areas.steel structure gymnasium.png

It is mainly used for large-span structures, workshops, warehouses, office buildings, large supermarkets, logistics warehouses, showrooms, hangar, etc.

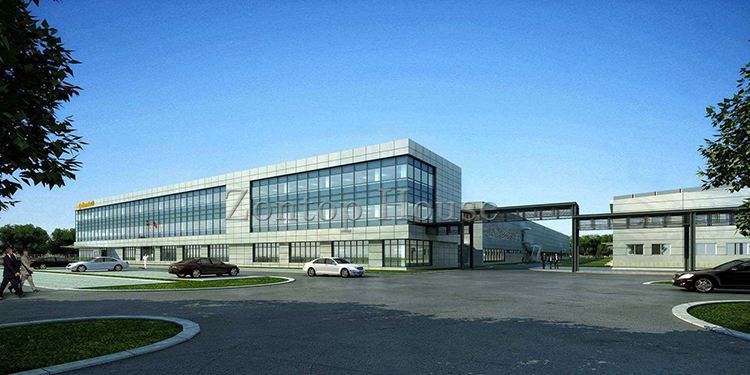

steel structure gymnasium.png

Feature

1. Wide span: single span or multiple spans, the max span is 36m without middle column.

2. Low cost: Unit price range from USD35/ m2 to USD95/ m2 according to customer's request.

3. Fast construction and easy installation.

4. Long using life: up to 50 years.

5. environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.


Why choose Us


1. Our product can be designed as customers’ interest.


2. Every production line will be checked by professional person and all products must


3. Go through multi-channel detection steps before packaging.


4. We can provide professional for installation guide.


5. The products shown are only part of our products. For more details ,please feel free to contact us anytime.
