Environmental Affordable Minimalist Style Residential Prefab House Steel Structure Villa

Environmental Affordable Minimalist Style Residential Prefab House Steel Structure Villa

Leisure vacation light steel frame log cabin, American style country family home,This building system has excellent thermal insulation property, in different climate and air temperature regions.

Product Details

Light Steel Villa Display


Light steel villa in white, American country style.

steel villa.jpg

Simply put, the parts are made in the factory and constructed on site.

The construction period of this house is one month.

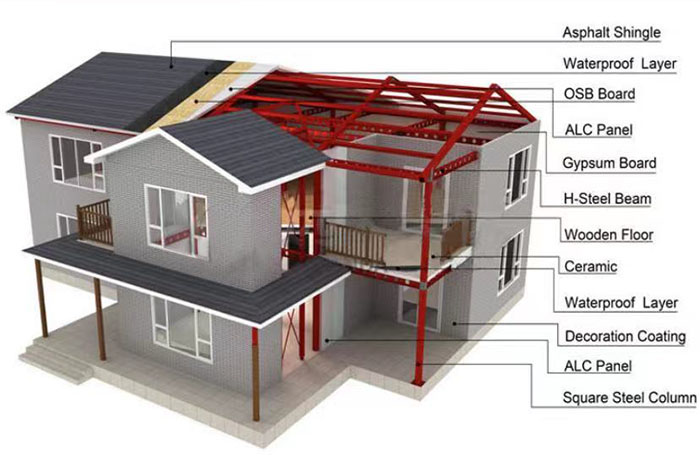

prefabricated villa.jpgLight Steel Villa  Description

light steel villa.jpg


Light Steel Villa Parameter

Product NameLight Steel Villa
Steel columnGalvanized Steel Frame, 100*100*2.5 square tube
Steel roof trussC100*40*15*2.0, welding and galvanized
Roof and wall purlinC100*40*15*2.0, galvanized
Ordinary bolt 4.8S, Galvanized
Main beam Galvanized Steel Frame, Q235 Steel, alkyd painting
Secondary beam C100*40*15*2.0 galvanized
Floor structure board Glass Magnesium board/ Fiber cement board
Wall Panel Colored-steel sheet
EPS sandwich panel/rock wool sandwich panel
Glass wool sandwich panel
Fire rating:A

Door Fire-resistant steel door/ Alloy sliding door
Live load on roofIn 120kg/Sqm
Wind Resistance Grade12 Grades
Earthquake-resistance10 Grades
Structure Usage70 years

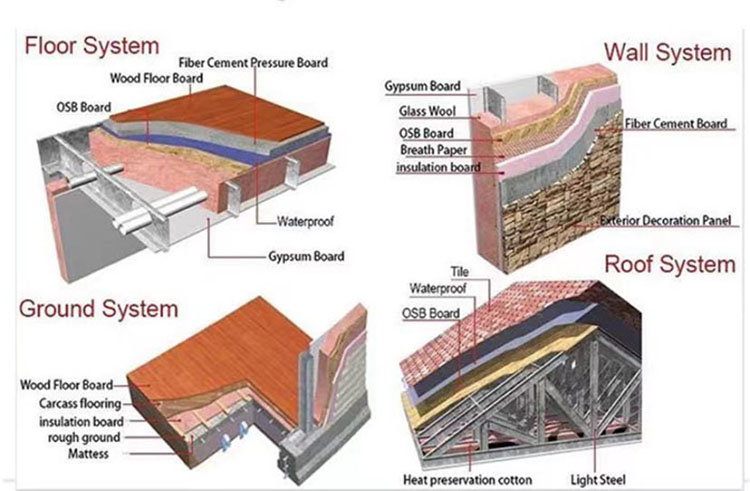

light steel villa.jpg


Light Steel Villa Advantage:

1. Shock resistance: It can withstand10 rare earthquakes and is suitable for areas with seismic intensity above 8.

2. Wind resistance: resistance to 70m/s hurricane, wind resistance rating is 14 or above.

3. Durability:The main structure can last for more than100 years.

4. Fire resistance: refractory time of up to 1-4 hours according to different designs.

5. Sound insulation: the sound insulation of the external wall can reach 75dB, and the inner wall can reach 55dB.

6. Heat insulation:The thermal resistance of 200mm thick composite wall can reach 3.2m2K/W, which is 11 times that of traditional building of same thickness.

7. Enviromental protection: more than90% of steel structure material can be recycled, and most other supporting material can be recycled.

8. Energy-saving:using new material for heat preservation and heat insulation.


we focus on supplying durable products that adhere to the best health and safety standards and environmental friendly at the right price. Please check our products to see exactly why we've chosen to supply the products we have.
