Modern Nordic Minimalist Style Architecturally Designed Prefabricated House Villa

Modern Nordic Minimalist Style Architecturally Designed Prefabricated House Villa

Light steel villas can be built in a variety of ways, simple and environmentally friendly, performance is far better than the traditional concrete and bricks house. It becomes an ideal eco-building construction pursued by the customer.

Product Details

Light Steel Villa Display

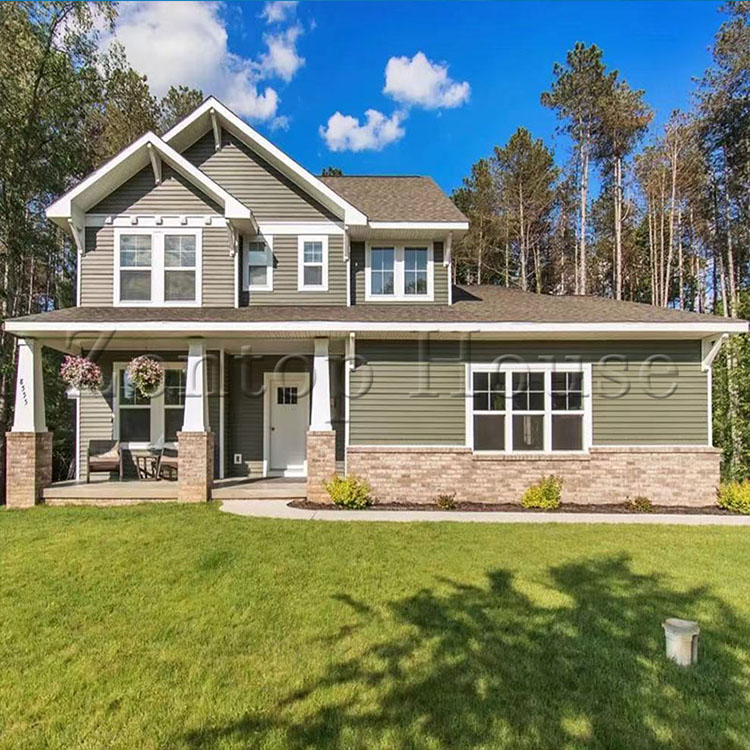

steel villa.jpg

Every component can easily be carried by hand- a house is like a carpentry job on a large scale. The main tool is a light, handheld screw gun. It is able to shape itself to any form and can be clad and insulated with a wide range of materials.

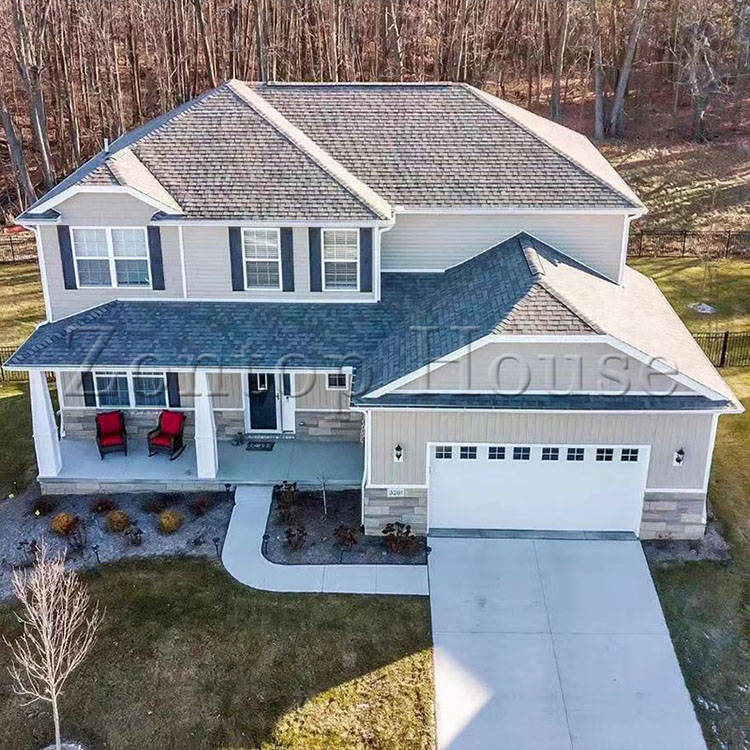

prefab villa.jpg

Light steel structures have many of the advantages of light-frame structures: They are light and allow quick building without heavy tools or equipment.

steel villa.jpgThe thickness of material can customize and all of them were galvanized.

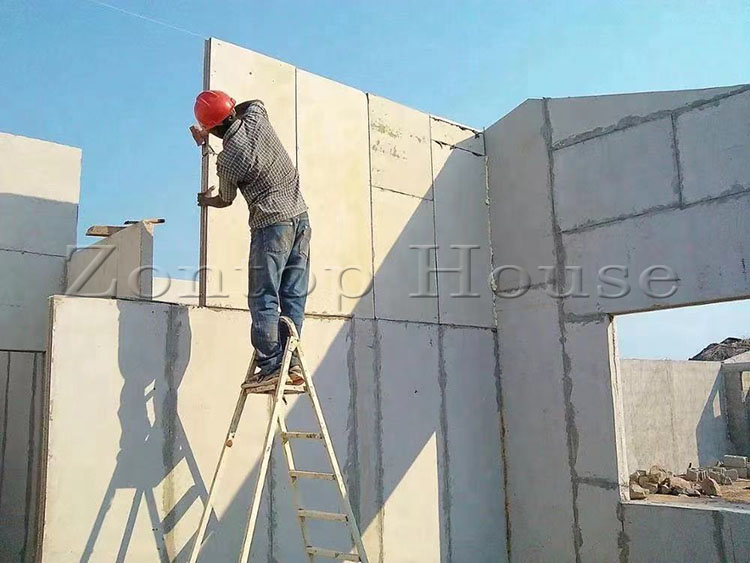

123-3.jpgWorkers install wall panels that have been made in advance.



Light Steel Villa  Description

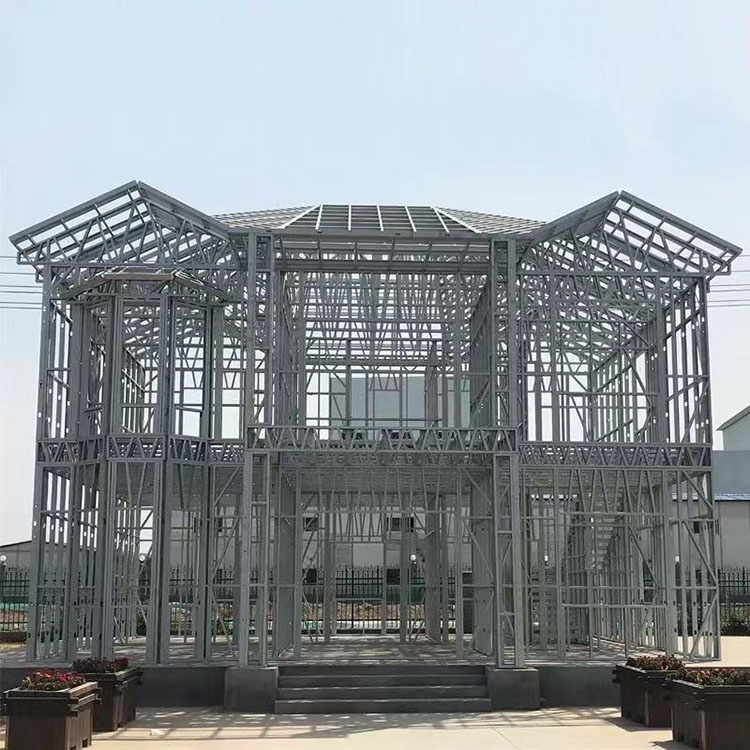

steel villa.jpg

 Light Steel Villa Parameter

Product NameLight Steel Villa
Steel columnGalvanized Steel Frame, 100*100*2.5 square tube
Steel roof trussC100*40*15*2.0, welding and galvanized
Roof and wall purlinC100*40*15*2.0, galvanized
Ordinary bolt 4.8S, Galvanized
Main beam Galvanized Steel Frame, Q235 Steel, alkyd painting
Secondary beam C100*40*15*2.0 galvanized
Floor structure board Glass Magnesium board/ Fiber cement board
Wall Panel Colored-steel sheet
EPS sandwich panel/rock wool sandwich panel
Glass wool sandwich panel
Fire rating:A

Door Fire-resistant steel door/ Alloy sliding door
Live load on roofIn 120kg/Sqm
Wind Resistance Grade12 Grades
Earthquake-resistance10 Grades
Structure Usage70 years



Light Steel Villa Advantage:

1. Shock resistance: It can withstand10 rare earthquakes and is suitable for areas with seismic intensity above 8.

2. Wind resistance: resistance to 70m/s hurricane, wind resistance rating is 14 or above.

3. Durability: The main structure can last for more than100 years.

4. Fire resistance: refractory time of up to 1-4 hours according to different designs.

5. Sound insulation: the sound insulation of the external wall can reach 75dB, and the inner wall can reach 55dB.

6. Heat insulation: The thermal resistance of a 200mm thick composite wall can reach 3.2m2K/W, which is 11 times that of the traditional building of the same thickness.

7. Environmental protection: more than90% of steel structure material can be recycled, and most other supporting material can be recycled.

8. Energy-saving: using new material for heat preservation and heat insulation.


we focus on supplying durable products that adhere to the best health and safety standards and environmentally friendly at the right price. Please check our products to see exactly why we've chosen to supply the products we have.
