Metal Frame Permanent Building Light Steel Structure H Beam-Prefabricated Apartment

Metal Frame Permanent Building Light Steel Structure H Beam-Prefabricated Apartment

Steel structure is composed of steel material structure, which is one of the main building structure types. The structure is mainly composed of steel plate, steel column, steel truss and other components, the components are usually used to between the weld, bolts or rivets connected. Because of its relatively light weight and simple construction, it is widely used in large factories, venues, high-level areas.

Send Inquiry
Product Details


Steel Structure Description

Pre engineered steel structure building is a Green economy building system, which is formed by the main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), door and window system. Pre engineered steel structure building building is widely used as warehouse, workshop, hangar, shed, etc.

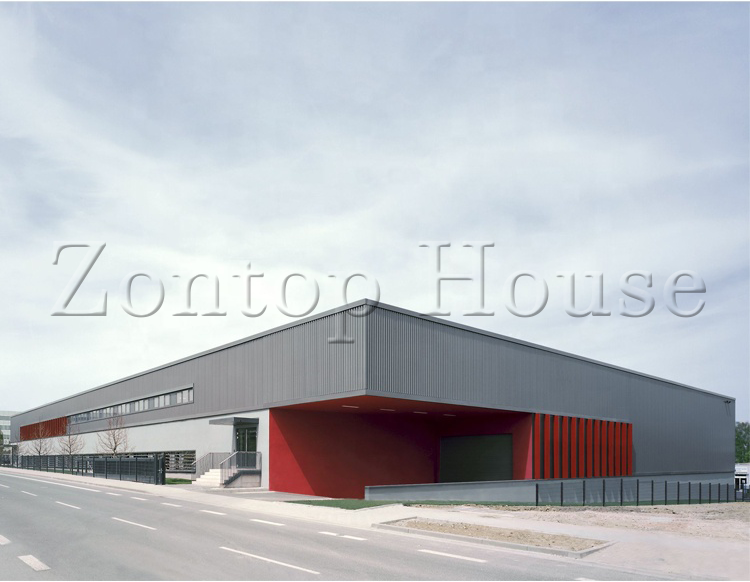

steel structure building.png

Steel Structure Parameters​

Product nameprefabricated steel structure gymnasium
Materialsteel Q235, Q345B
Colorblue, grey, red, etc.Customer's requirements
LengthWith customer's requirements
WidthSingle span, double-span, multi-span. With customer's requirements
HeightWith customer's requirements
ColumnQ235, Q345 welded H section steel or hot rolled H section steel
BeamQ235, Q345 welded H section steel
PurlinQ235 C channel or Z channel
Knee braceQ235 angle steel
Vertical and transversal
Q235 angle steel, round bar or steel pipe
Tie barQ235 steel pipe
BraceQ235 round bar
Cladding systemEPS, PU, Fiber Glass and Rock Wool and sandwich panels or corrugated steel sheet with fiberglass wool insulation. Available in different color & gauges
Partition wallsandwich panels(EPS, PU, Fiberglass, Rock wool etc.)Available in different color & gauges
Door
sandwich panel sliding door or roller door
Gutterstainless steel or color steel sheet
RainspoutPVC Pipe
Wind resistance grade12 grades
Earthquake-resistance8 grades
Life span50 years
Paint optionsAlkyd painting, two primary painting, two finish painting(grey paint, red paint, white paint, epoxy zinc etc) or galvanized

Steel Structure Specifications:

1) Main Steel: Q345, Q235, Q345B, Q235B etc.

2) Column & Beam: Welded or Hot rolled H-section.

3) Connection method of steel structure: welding connection or bolt connection.

4) Wall & Roof: EPS, Rockwool, PU sandwich, corrugated steel sheet.

5) Door: Rolled up door or Sliding door.

6) Window: Plastic steel or Aluminum alloy window.

7) Surface: Hot dip galvanized or painted.

8) Crane: 5MT, 10MT, 15MT and more.

steel structure workshop.png

Drawings & Quotation:

1) Customized design is welcomed.

2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height.steel structure building.png

Related Product

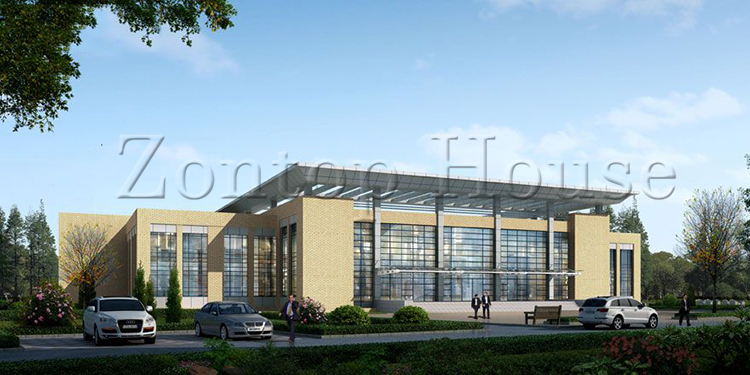

steel structure gymnasium.pngsteel structure gymnasium.png

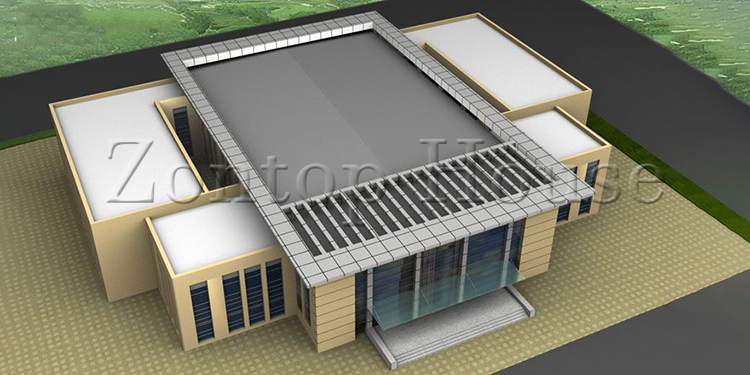

steel structure gymnasium.png

Why choose Us:

1. Our product can be designed as customers’ interest.

2. Every production line will be checked by professional person and all products must 3. Go through multi-channel detection steps before packaging.

4. We can provide professional for installation guide.

5. The products shown are only part of our products. For more details ,please feel free to contact us anytime.
