Factory Direct Sales Customized Steel Structure Large Scale Mobile Office K Type Prefabricated House

Factory Direct Sales Customized Steel Structure Large Scale Mobile Office K Type Prefabricated House

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

Product Details

Prefab K House Overview

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

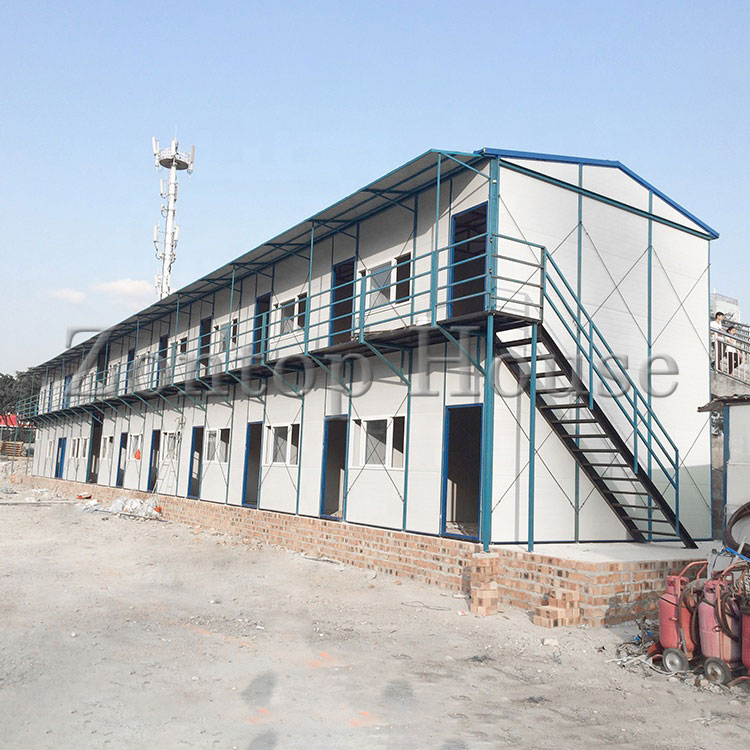

K-type prefabricated house, temporary-domitory-with-bathroom,  light steel frame modular prefab house

Prefab K House Parameter

Product Name

Prefab House

Column

Double C80 steel, Thickness 1.8mm, Material Q235

Roof Beam

C80 steel, Thickness 1.5mm, Material Q235

Floor Purlin

C80 steel, Thickness 1.5mm, Material Q235

Wall Panel

Colored-steel sheet
EPS sandwich panel/rock wool sandwich panel
Glass wool sandwich panel
Fire ratingA

Window

Aluminum sliding window/sliding window with a security bar

Door

Steel door. High-quality press lock

Roof bearing weight

110kg/m2

Snow load on roof

130Pa (13cm thickness)

Floor bearing weight

200kg/m2

Anti-earthquake

9 grade

Application

Dormitory/Storage/Office/Carport/Hotel/Sentry Box/Warehouse/Store/Refugee/Workshop, etc

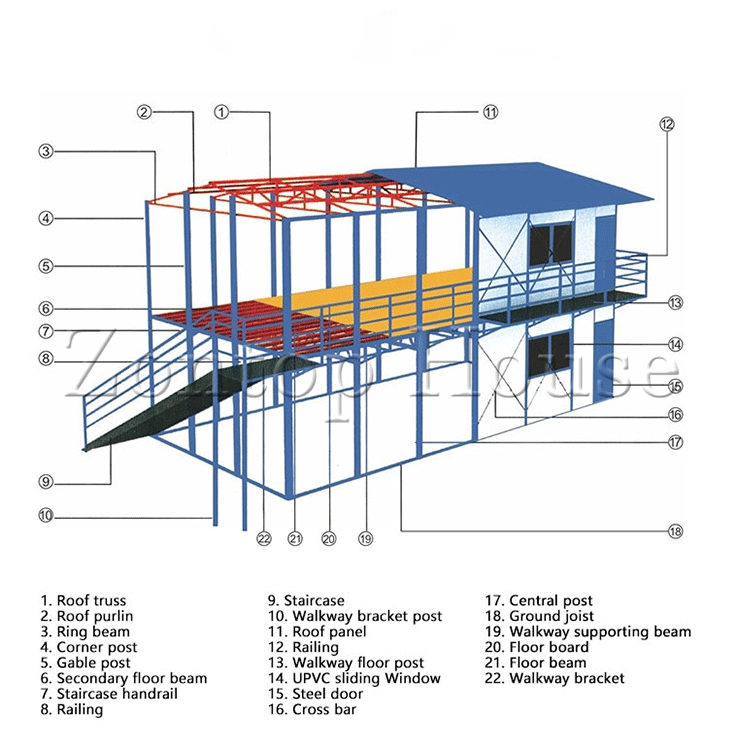

Prefab K House Structureprefab house,prefab home,prefabricated houseAs a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc


Main components :

1.Prefabricated house is made of light steel and sandwichpanels for the walla and roof.

2.The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation.

3.The standard prefabricated house prefab house is made by 1.8m as one modular.Components areconnected by bolts and the walls are fixed with rivets.

Product details1621505046288943.gif

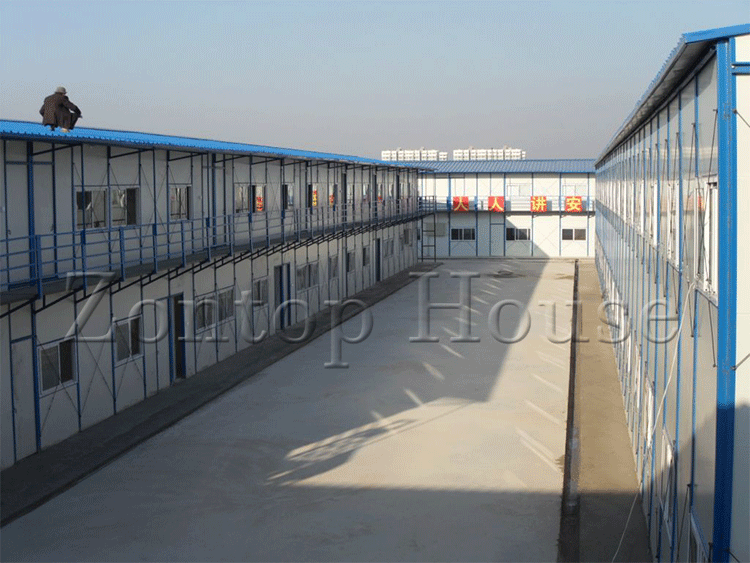

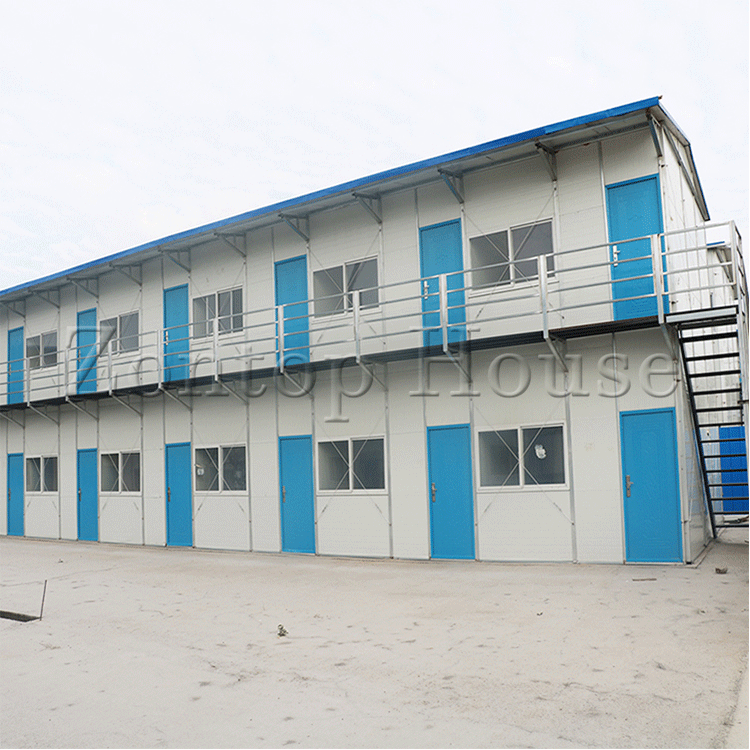

Project display

prefab house,prefab home,prefabricated houseprefab house,prefab home,prefabricated house

Why choose Us:

1.Our product can be designed as customers’ interest.

2.Every production line will be checked by professional person and all products must 3.go through multi-channel detection steps before packaging.

4.We can provide professional for installation guide.

5.The products shown are only part of our products. For more details ,please feel free to contact us anytime.
