Easy Assembled Economical Durable Modular Multipurpose Building Prefab K House

Easy Assembled Economical Durable Modular Multipurpose Building Prefab K House

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.

Product Details


Prefab K House Overview

The prefab house is also known as the movable prefab house and the colored steel movable house. The prefab house is a new concept environmentally-friendly and economical movable prefab house with light steel as the framework, sandwich panel as the enclosure material, and space combination with standard modulus series, and the components are connected by bolts.prefab house,prefab home,prefabricated housePrefab K House Parameter

Product Name

Prefab House

Column

Double C80 steel, Thickness 1.8mm, Material Q235

Roof Beam

C80 steel, Thickness 1.5mm, Material Q235

Floor Purlin

C80 steel, Thickness 1.5mm, Material Q235

Wall Panel

Colored-steel sheet
EPS sandwich panel/rock wool sandwich panel
Glass wool sandwich panel
Fire ratingA

Window

Aluminum sliding window/sliding window with a security bar

Door

Steel door. High-quality press lock

Roof bearing weight

110kg/m2

Snow load on roof

130Pa (13cm thickness)

Floor bearing weight

200kg/m2

Anti-earthquake

9 grade

Application

Dormitory/Storage/Office/Carport/Hotel/Sentry Box/Warehouse/Store/Refugee/Workshop, etc

prefab house,prefab home,prefabricated housePrefabricated house is made of light steel as steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation.

prefab house,prefab home,prefabricated houseAs a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc

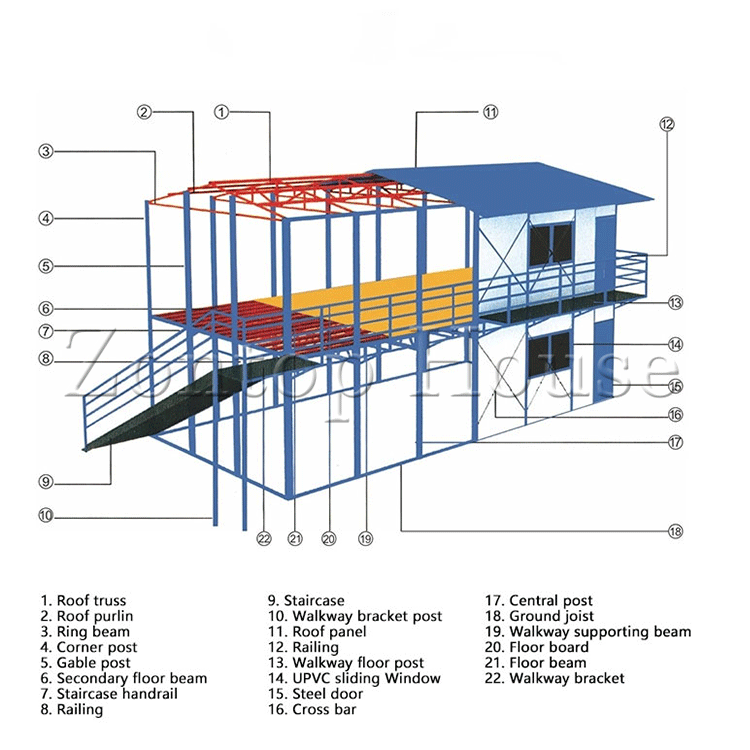

Prefab K House Structureprefab house,prefab home,prefabricated housePrefab K House Features and Advantages

1. Recycle use:

all components are standard and fabricated in factory, which makes it suitable in recycle use for many times.

2. Reliable Structure: The light steel and the flexible structure system is more safe and reliable which makes it to meet the design criteria based on the construction requirements.

3. Various selection:

the house can be designed as single, two or three stories, the outer panels can be selectable based on fireproof or non-fireproof materials

4. Assembly & Dismantling: Can be assembled and dis-Mantled with simple tools and Multiple times.

5. Easy & Quick installation: 6 workers + 2 days = 3K x 10K.

6. Elegant outlook: The house is elegant in appearance.

7. Flexible: The doors and windows can be fixed in random position. Interior partition can be arranged in any position on the transverse Direction.

8. Long life:All the light steel construction has been Auto-painted and highly resistant to corrosiveness.prefab house,prefab home,prefabricated house

Prefab K House Characteristics:

1. Wide span:  single span or multiple spans, the max span is 36m without middle column.

2. Low cost and maintenance: unit price range from USD35/m2 to USD70/m2 according to customers request.

3. Fast construction and easy installation:  time saving and labor saving.

4. Long using lifespan: up to 50 years.

5. Nice appearance.

6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.prefab house,prefab home,prefabricated house

Main components :

1.Prefabricated house is made of light steel and sandwichpanels for the walla and roof.

2.The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation.

3.The standard prefabricated house prefab house is made by 1.8m as one modular.Components areconnected by bolts and the walls are fixed with rivets.prefab house,prefab k house

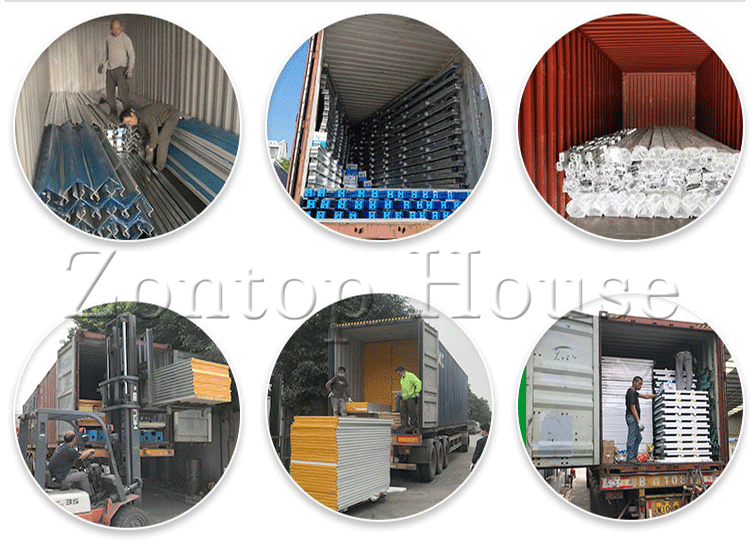

Transportationprefab T house, prefabricated T house, temporary dormitory mobile prefab house, light steel frame prefab house

Why choose Us:

1. Our product can be designed as customers’ interest.

2. Every production line will be checked by professional person and all products must 3. Go through multi-channel detection steps before packaging.

4. We can provide professional for installation guide.

5. The products shown are only part of our products. For more details ,please feel free to contact us anytime.
