Newly Designed Light Luxury Style Large-Scale Glass Curtain Wall Light Steel Frame Modular Resort Container House

Newly Designed Light Luxury Style Large-Scale Glass Curtain Wall Light Steel Frame Modular Resort Container House

Large glass modular houses can be used as holiday houses offices and restaurants. The new design has good lighting, Thermal insulation, low cost, easy to use, and environmentally friendly

Product Details


Container House Displaycontainer prefab .jpg

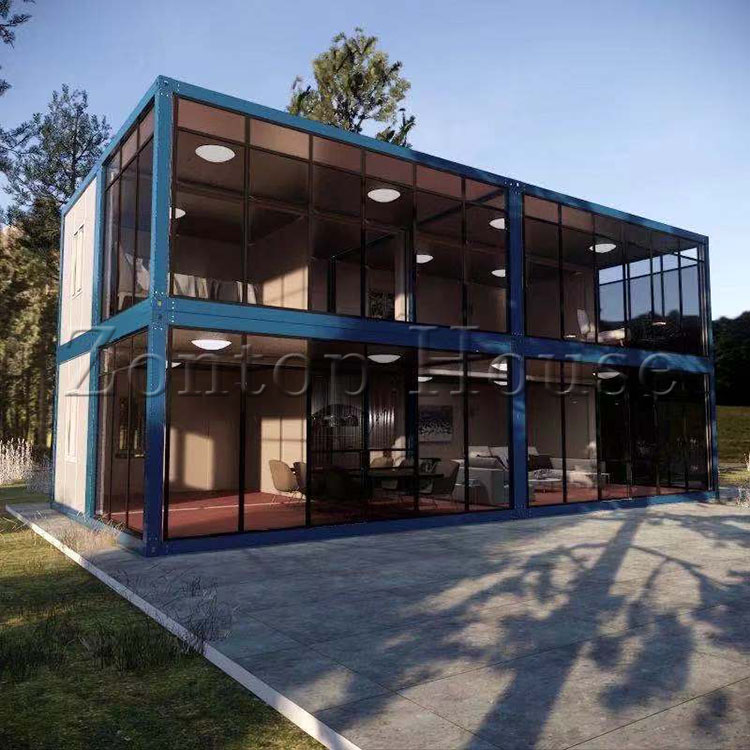

Large Glass Modular Houses Holiday Houses Offices Restaurant , It can also be used as a place of entertainment.

prefab container.jpg

Prefab house is a new type of building structure system, its frame is made up of galvanized steel foundation and pillars, the beam is galvanized square tube.

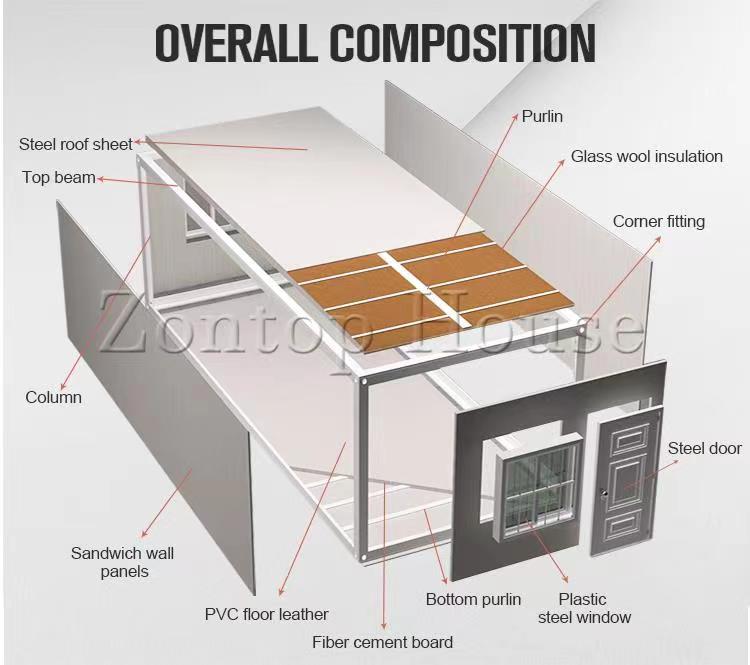

prefabricated container.jpgContainer House StructurePrefab house,container house,steel building,light steel,prefabricated build,container home,prefab home,prefabricated homeContaienr House Parameter

Product NameContainer House
Size(L*W*H)External Size: L5950*W2438*H2896
Internal Size:  L5800*W2225*H2560
Steel StructureFrame: Q235 Strip Steel
Hot-rolled galvanized, anti-corrosive coating,
Thickness:2.5/2.7/3.0 mm
Corner post: Galvanized, anti-corrosive2.5/3.0 mm

RoofRoof frame is pre-installed
1)Colored-steel sheet (0.4mm)
2)Glass wool insulation (100mm) Fire Rating:A
3)Purlin: Section C80 Galvanized Steel (1.2mm)
4)Ceiling: Steel self-connected ceiling (0.5mm colored-steel)
WallV950  Rock wool sandwich panel
1150   glass fiber sandwich panel
0.4mm steel sheet             Fire rating: A
WindowHollow plastic window with yarn fan and anti-theft net
Size: 930*1200 2units
FloorBottom frame is pre-installed
1)18mm fiber cement board
2)2.0mm PVC leather
3)100mm glass wool insulation  (optional)
DoorSteel door  High-quality press lock
Size: 970*2070mm
Plumbing and
Drainage
Pre-installed
ElectricityOptional EU/UK socket, with distribution box, light, swich etc.
Loading 6 sets per 40HQ contanier
Application Dormitory/Guard House/Storage/Office/Show Room/House
Store/Refugee

container house

The thickness of material can customize and all of them were galvanized


Container House Advantage:

1.Standard type: excellent performance, affordable price, convenient installation, and combination. It can be demolished many times and easy to move.

2.It is the main use for office and accommodation in construction site, with the characteristics of standardization.

3.High-grade type: strong and durable, meticulous workmanship, beautiful personality, convenient transportation, excellent products with personalized customization, suitable for a variety of environmental requirements, a large number of users in tourist areas, office, accommodation, toilet, etc.


FAQ

1.Q: What should l provide to build a container house?

   A: So easy! Sketch drawing would be a better reference for us. However, you will never mind if you don’t have any. Simply notify us of your requirements, such as the area, usage, and the stories of the house. Before long, you’ll possess an amazing design.

2.Q: How could l ensure the cost of building a container house?

   A: Firstly, the designing scheme should be accepted. Then, the kind of building material should be confirmed since different types and qualities make various prices. After that, we will send you a detailed quotation.

3.Q: It is difficult to build a container house?

   A: Totally not, you can build the house independently according to the construction drawing as long as you know how to use an electric tool.

4.Q: Does this kind of house can only be used in residential buildings?

   A: Absolutely not. It can be used in all kinds of buildings, such as hotels, offices, schools, entertainment clubs, homes, etc.


we focus on supplying durable products that adhere to the best health and safety standards and environmentally friendly at the right price. Please check our products to see exactly why we've chosen to supply the products we have.
