2021 Lastest Design Detachable Modular Flat Pack Container House Home For Wholesale

2021 Lastest Design Detachable Modular Flat Pack Container House Home For Wholesale

Flat pack container house can be used as office, meeting room, dormitory, shop, exhibition center in the fields of building, railway, highway, water conservancy project, electric power, business, tourism and military use.

Product Details



Container House Description

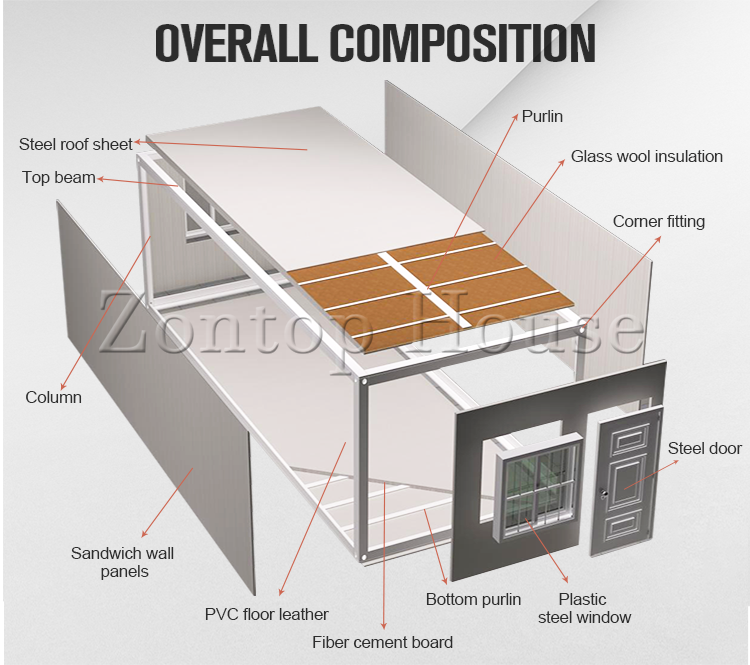

Flat pack container house can be used as office, meeting room, dormitory, shop, exhibition center in the fields of building, railway, highway, water conservancy project, electric power, business, tourism and military use.Prefab house,container house,steel building,light steel,prefabricated build,container home,prefab home,prefabricated homeWith decoration of external wall, slope roof container vocation house is all air-tight, heat-tight, warm-keeping, water-proof and anti-corrosive.container home.pngContainer House Parameter

Product NameContainer House
Size(L*W*H)External Size: L5950*W2438*H2896
Internal Size:  L5800*W2225*H2520
Steel StructureFrame: Q235 Strip Steel
Hot-rolled galvanized, anti-corrosive coating,
Thickness:2.5/2.7/3.0 mm
Corner post: Galvanized, anti-corrosive2.5/3.0 mm

RoofRoof frame is pre-installed
1)Colored-steel sheet (0.4mm)
2)Glass wool insulation (100mm) Fire Rating:A
3)Purlin: Section C80 Galvanized Steel (1.2mm)
4)Ceiling: Steel self-connected ceiling (0.5mm colored-steel)
WallV950  Rock wool sandwich panel
1150   glass fiber sandwich panel
0.4mm steel sheet             Fire rating: A
WindowHollow plastic window with yarn fan and anti-theft net
Size: 930*1200 2units
FloorBottom frame is pre-installed
1)18mm fiber cement board
2)2.0mm PVC leather
3)100mm glass wool insulation  (optional)
DoorSteel door  High-quality press lock
Size: 970*2070mm
Plumbing and
Drainage
Pre-installed
ElectricityOptional EU/UK socket, with distribution box, light, swich etc.
Loading 6 sets per 40HQ contanier
Application Dormitory/Guard House/Storage/Office/Show Room/House
Store/Refugee

Prefab house,container house,steel building,light steel,prefabricated build,container home,prefab home,prefabricated home

Container House Superiority:

1.Steel Structure Light-weightness and more resistance to earthquakes and strong winds.

2.Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel.

3.Steel Structure Shorter construction period with the help of modularity and error-free prefabrication of building elements.

4.Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage of materials in the factory.

5.Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of the space.container home

Flat Packing Container House

It has the advantages of convenient disassembly and packing, lower transport cost, modularization installation and fast construction.  When transported to the site, the house could be assembled, fixed, combined and stacked easily. As the steel frame is strong and reliable, those houses could be stacked vertically and connected parallelly to create more space. It is widely used as temporary office, dormitory, camp, meeting rooms, restaurant, reception building, temporary sales offices, permanent housing and so on.container home

Modular Container House

Those modular units can be stacked and linked together with staircase and balconies to create more space to be used as office, department, dormitory, school, etc. container home

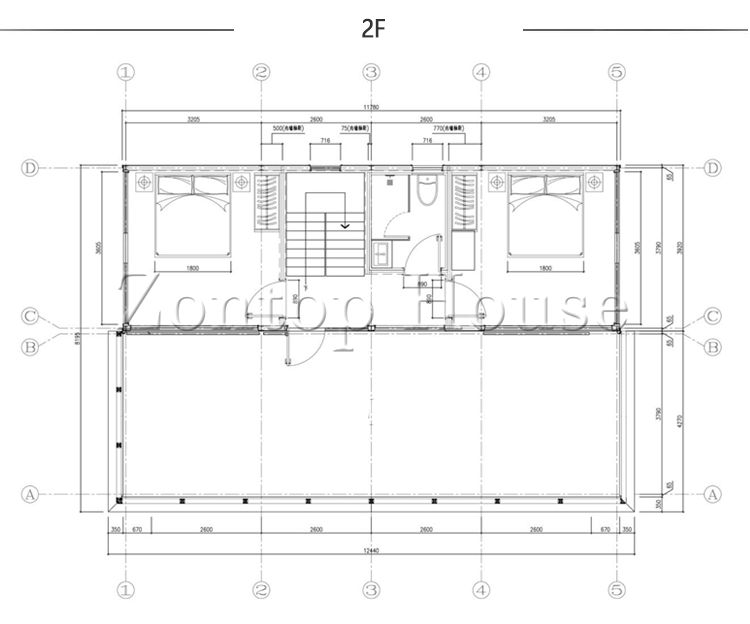

We have a professional design team that can customize the room  layout, size and overall distribution according to customer needs, and provide CAD drawings.prefabricated home.png

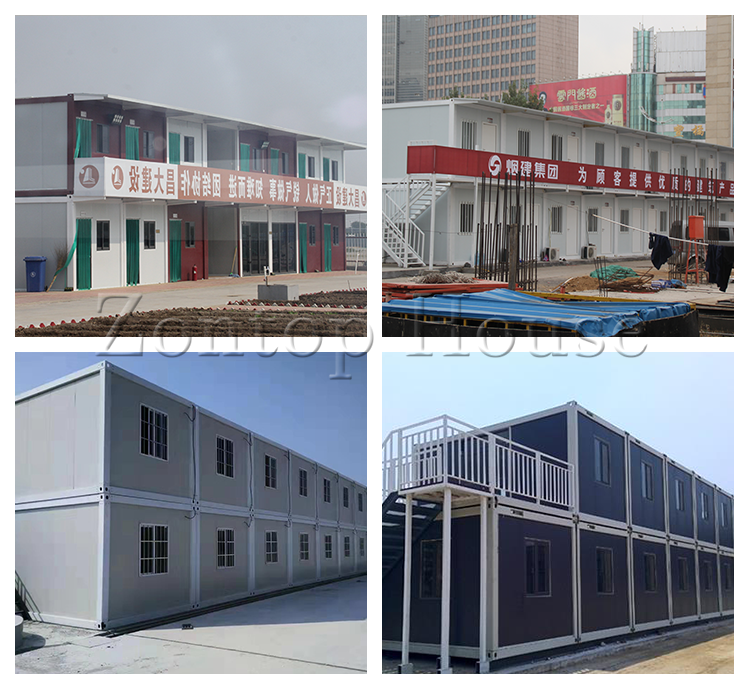

Similar Projectsprefab house.png
