China Factory Supply Design Luxury Style Modern Prefab Container House

China Factory Supply Design Luxury Style Modern Prefab Container House

Container house are a modular consturction product which based on a steel frame and light wall panel structure system. It is consists of top frame, bottom frame, 4 posts and 14 pieces exchangeable wall panels. It can be flattened for easy transporting.

Product Details

We can design different styles of prefab houses,tiny house,container house,disinfection channel, etc.

Welcome to customize the shell, model, weight, size, house design, etc.

We have professional house designers who can customize exclusive houses for you.

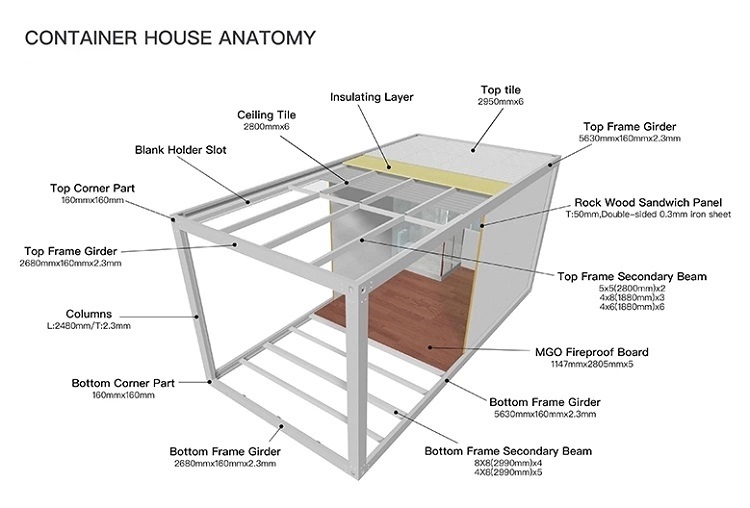

Hdc475eb0cbc044b3ab03ae0a8147e74b5.jpgContaienr House Parameter

Product Name

Container House

Size(L*W*H)

External Size: L5950*W2438*H2896
Internal Size:  L5800*W2225*H2520

Steel Structure

Frame: Q235 Strip Steel
Hot-rolled galvanized, anti-corrosive coating,
Thickness
2.5/2.7/3.0 mm
Corner post: Galvanized, anti-corrosive2.5/3.0 mm

Roof

Roof frame is pre-installed
1)Colored-steel sheet (0.4mm)
2)Glass wool insulation (100mm) Fire Rating
A
3)Purlin: Section C80 Galvanized Steel (1.2mm)
4)Ceiling: Steel self-connected ceiling (0.5mm colored-steel)

Wall

V950  Rock wool sandwich panel
1150   glass fiber sandwich panel
0.4mm steel sheet             Fire rating: A

Window

Hollow plastic window with yarn fan and anti-theft net
Size: 930*1200 2units

Floor

Bottom frame is pre-installed
1)18mm fiber cement board
2)2.0mm PVC leather
3)100mm glass wool insulation  (optional)

Door

Steel door  High-quality press lock
Size: 970*2070mm

Plumbing and
Drainage

Pre-installed

Electricity

Optional EU/UK socket, with distribution box, light, swich etc.

Loading

6 sets per 40HQ contanier

Application

Dormitory/Guard House/Storage/Office/Show Room/House
Store/Refugee


Contaienr House Advantage:

1.Packing: loaded into 40'HQ


2.Assembled for simple,convenient and fast.


3.Convenient for moving, transporting,and freight cheaper.


4.Design: as customized,can be freely assembled into different sizes of container room


5.Style:as customized


6.Indoor height : 2.6 meters or according to customer’s requirements

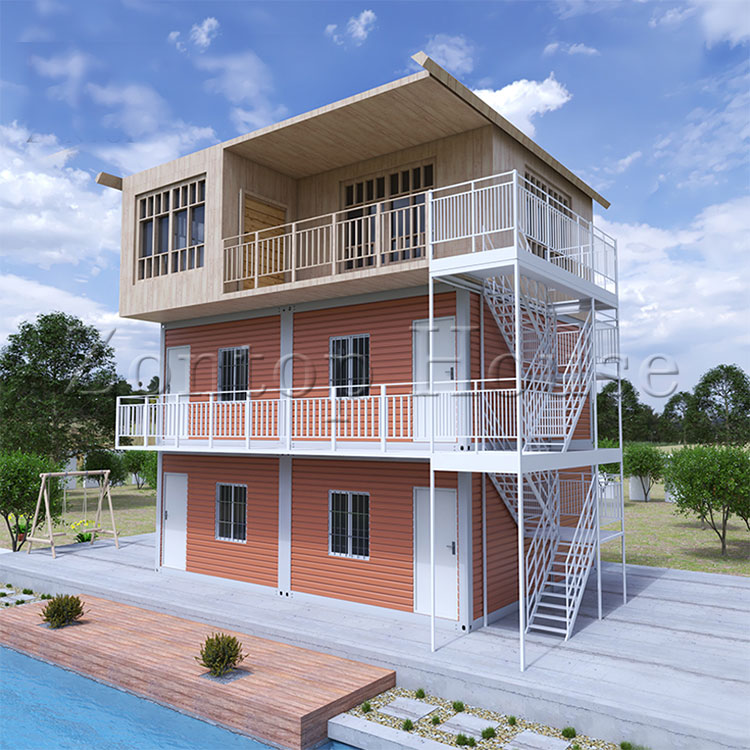

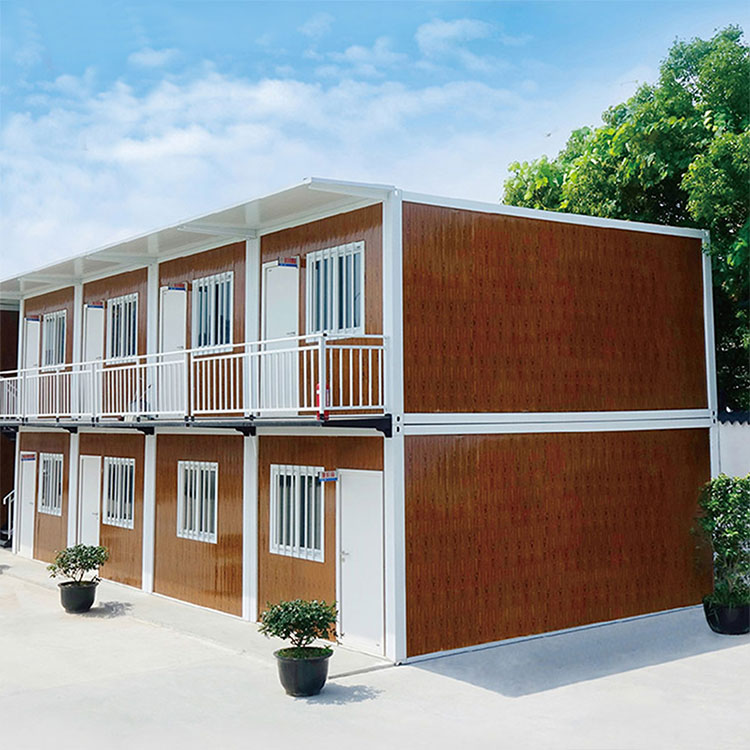

7.Quality is guaranteed 详情图73.jpgWe can provide home design expertise,construction knowledge you need to build your custom home in short time and within your budget. We help you to achieve the balance between quality, function and costs.原图11.jpgContainer can be produced according to customer requirements, and provide the staircase, iron frame bed,air conditioning, enclosing wall and other facilities.a (4).png

We are able to provide you with not only construction scheme, but landscape design! One-stop service is our outstanding superiority with no doubt.

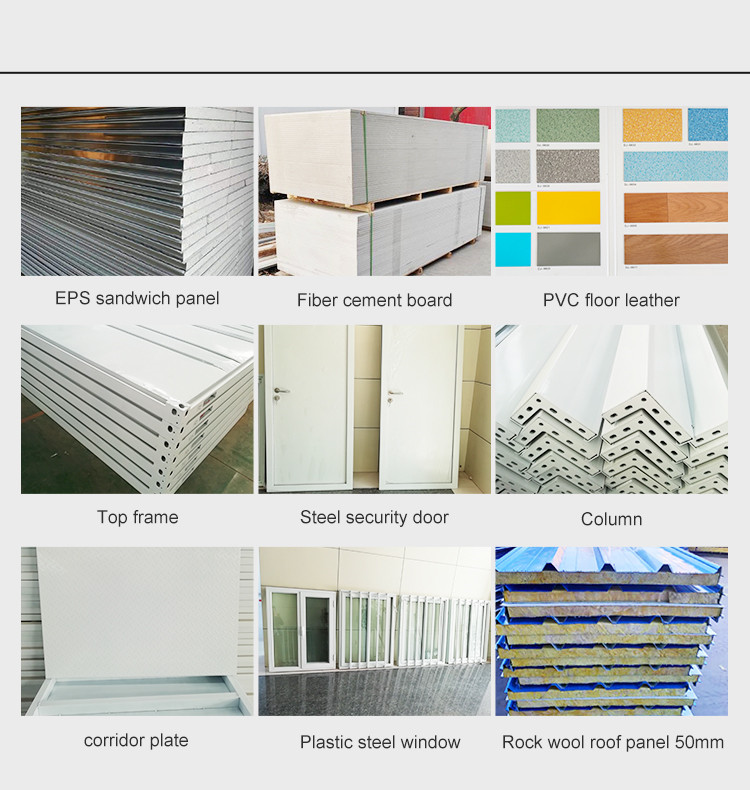

Cases Of Components1612249253628917.jpg

Why choose Us:

1.Our product can be designed as customers’ interest.

2.Every production line will be checked by professional person and all products must 3.go through multi-channel detection steps before packaging.

4.We can provide professional for installation guide.

5.The products shown are only part of our products. For more details ,please feel free to contact us anytime.
